Tactile guidance tiles for railway stations
Author
Zahna Fliesen
System ceramics
Share article
The image above shows a Wiener Linien station. A tactile guidance system in 15 x 15 cm was installed there.
Tiles for railway stations
Our tactile guidance tiles in ceramic porcelain stoneware give blind and visually impaired people maximum safety and orientation in stations. The tiles are available in 30 × 30 cm in two thicknesses, and in black and white. Their structured surface with ribs or studs provides clear tactile guidance.
The ceramic porcelain stoneware stands out for robustness, slip resistance and durability and therefore offers decisive advantages over other floor coverings. High-quality tiles from Zahna-Fliesen are well suited to accessible public space.
For walking surfaces we recommend our tiles in the matching 30 × 30 cm format. Alternatively they can be combined with other floor coverings.
| Type | Format | Thickness | Surface | Colour |
|---|---|---|---|---|
| Tactile guidance system | 30 × 30 cm | 1.1 / 1.5 cm | stud | white |

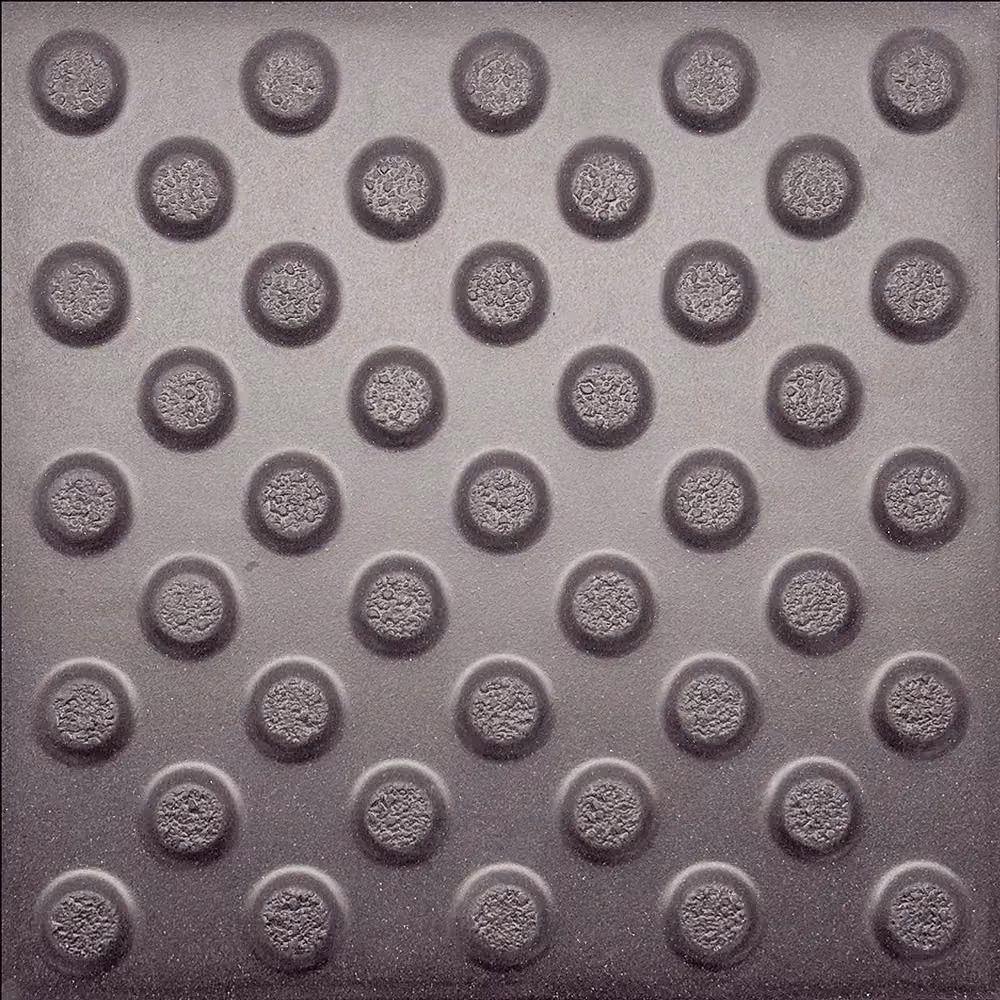

| Tactile guidance system | 30 × 30 cm | 1.1 / 1.5 cm | stud | black |
| Tactile guidance system | 30 × 30 cm | 1.1 / 1.5 cm | rib | black |

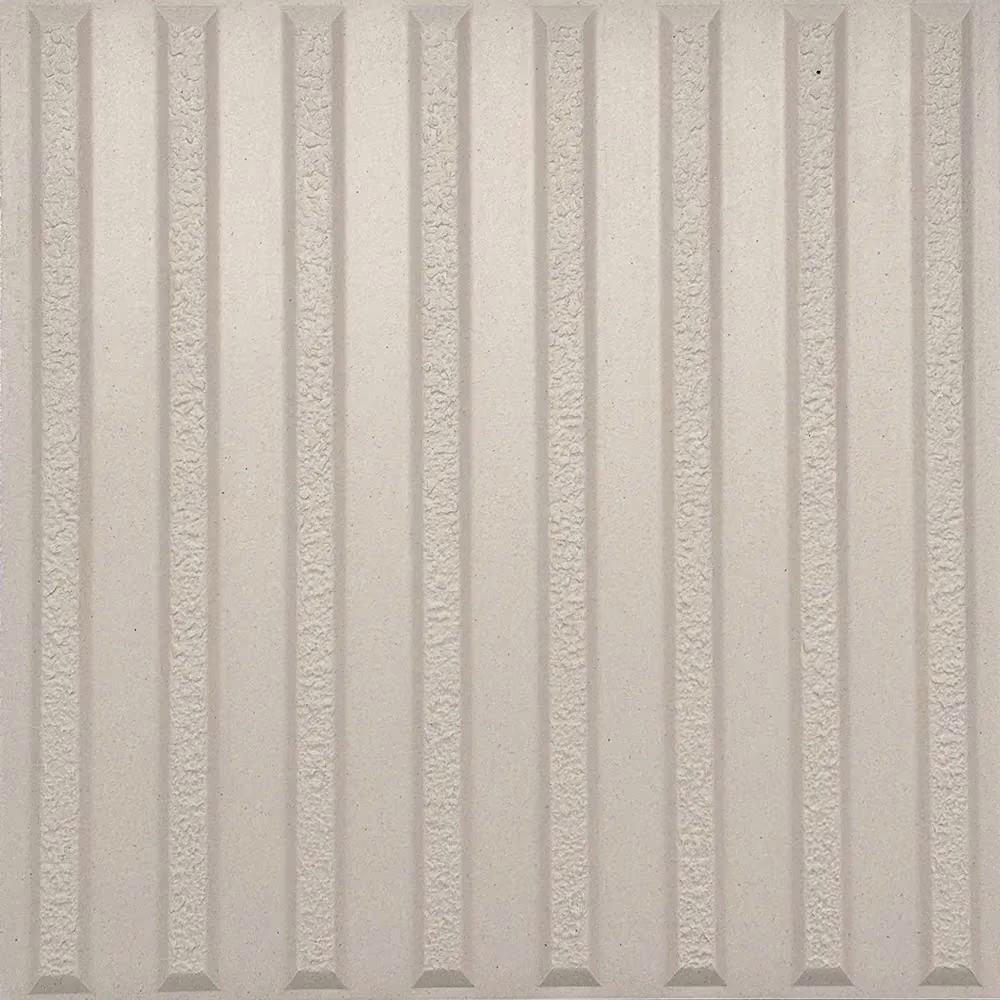

| Tactile guidance system | 30 × 30 cm | 1.1 / 1.5 cm | rib | white |
| Surface tiles | 30 × 30 cm | 1.1 / 1.5 cm | R9 / R10 / R11 | white |
| Surface tiles | 30 × 30 cm | 1.1 / 1.5 cm | R9 / R10 / R11 | black |

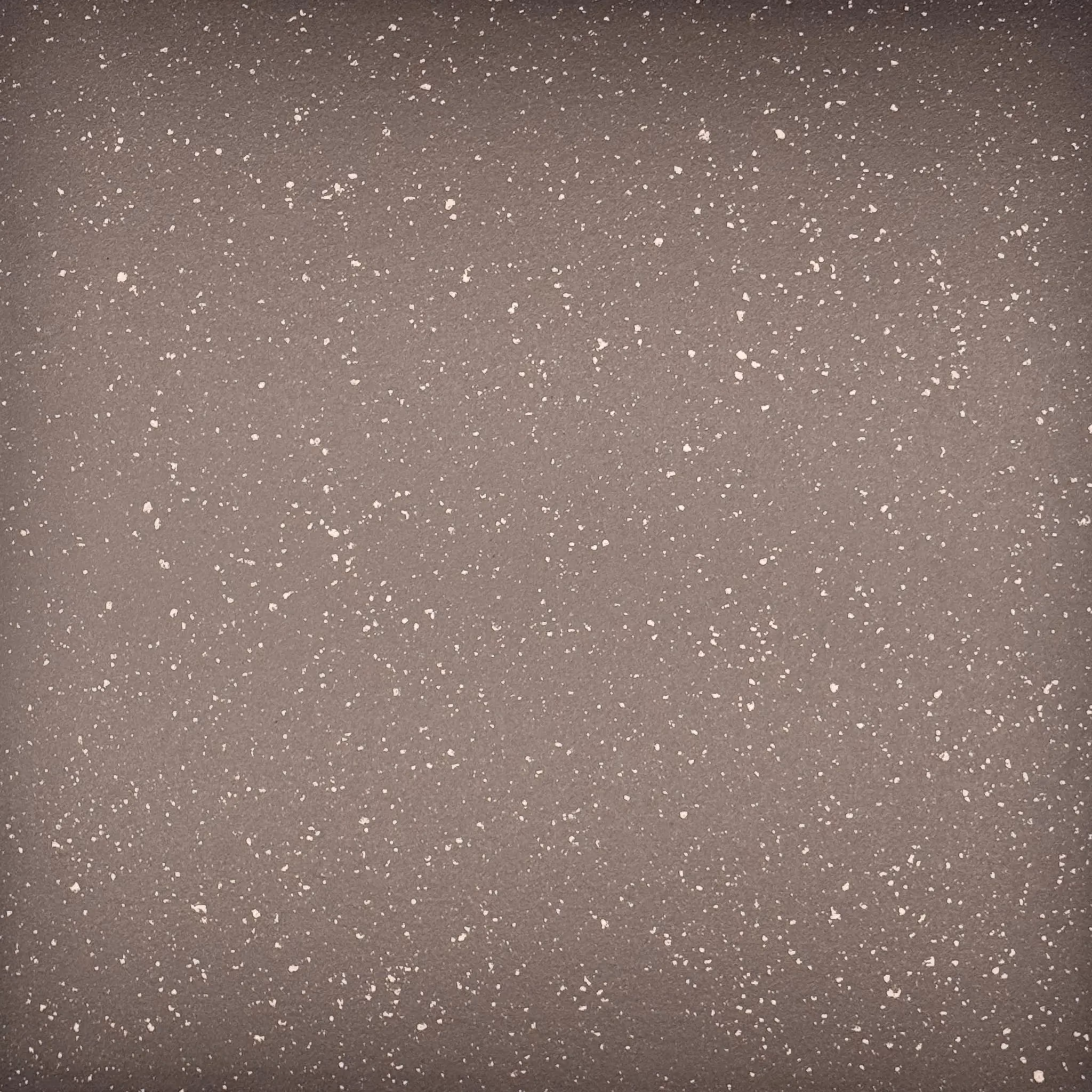

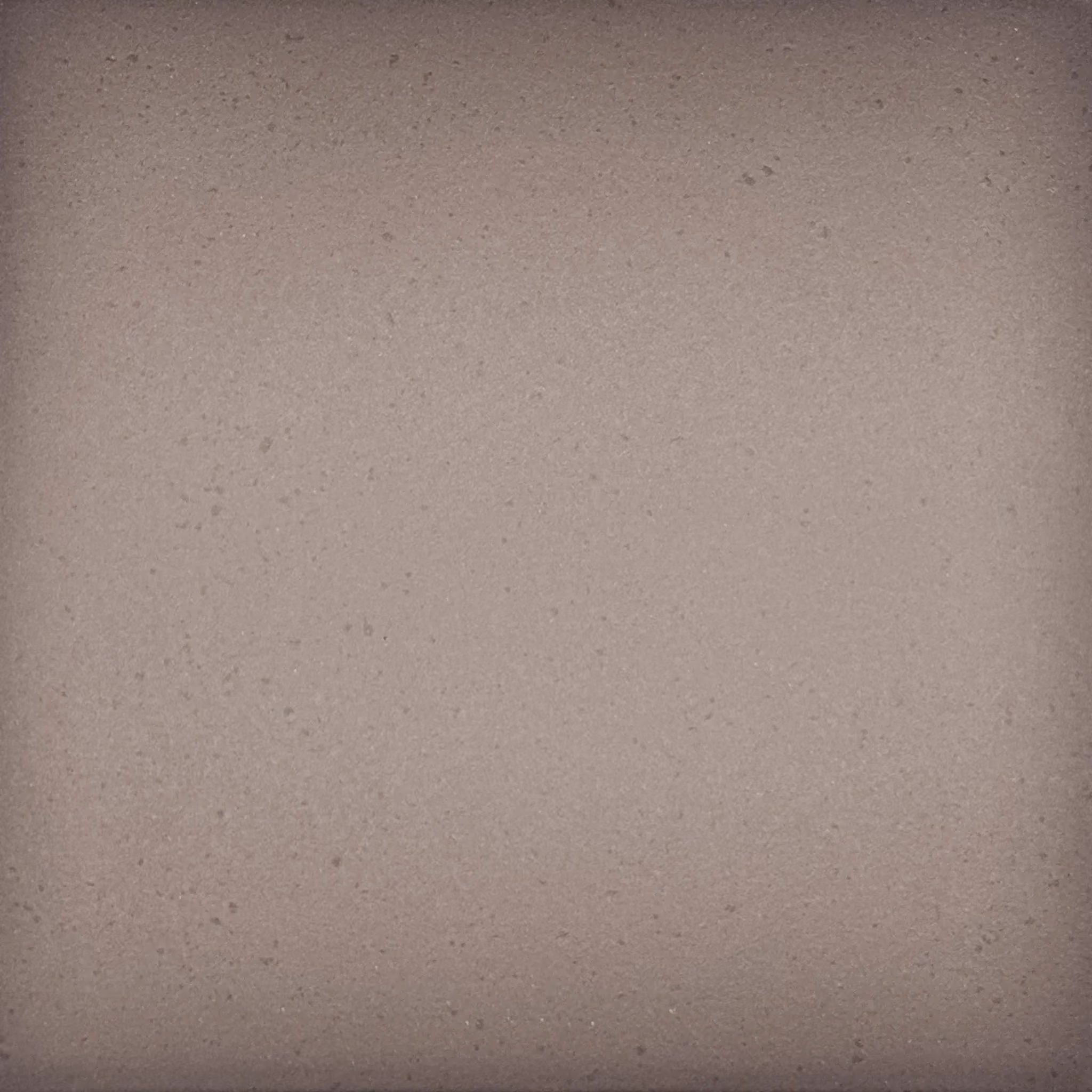

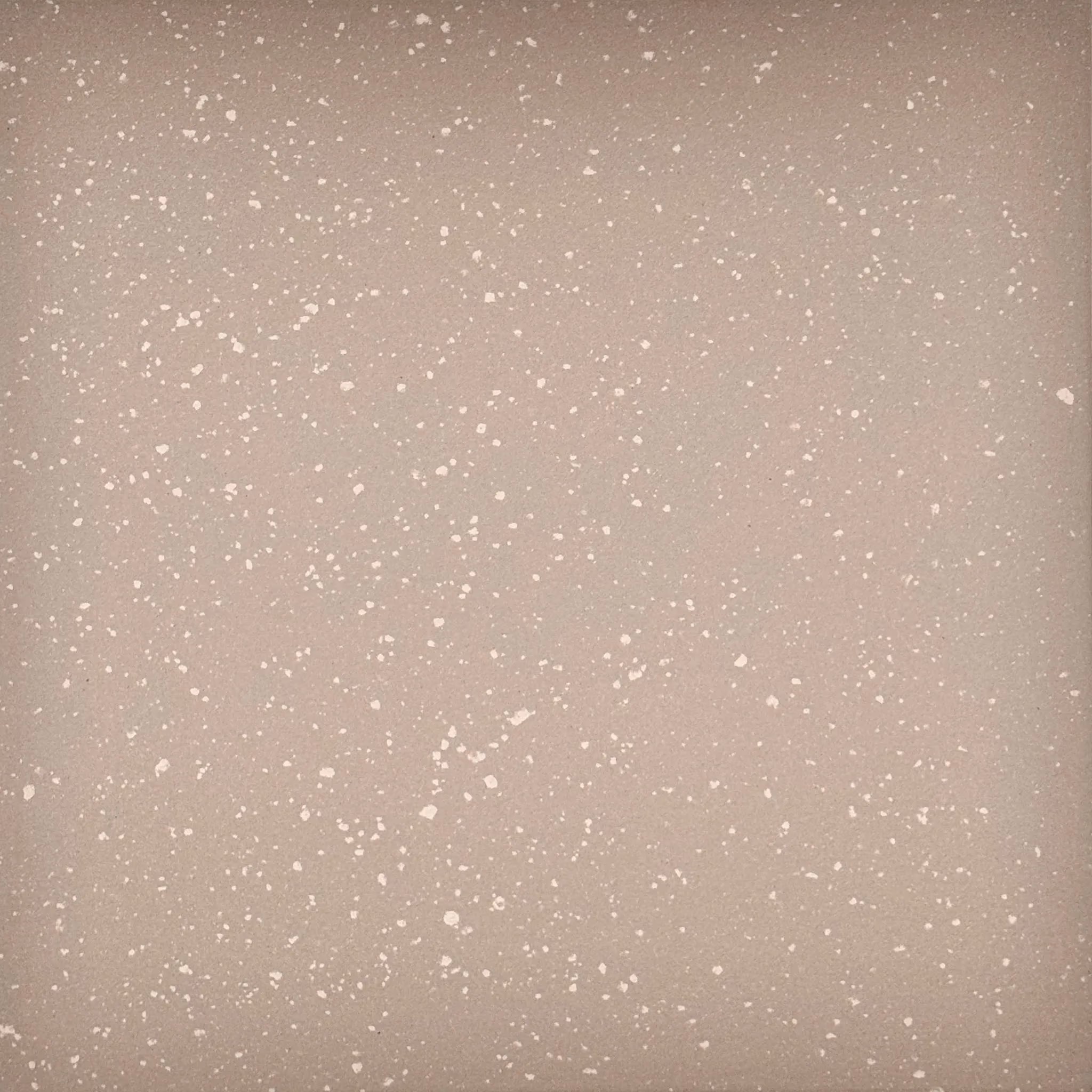

| Surface tiles | 30 × 30 cm | 1.1 / 1.5 cm | R9 / R10 / R11 | light gray uni with light flakes |
| Surface tiles | 30 × 30 cm | 1.1 / 1.5 cm | R9 / R10 / R11 | anthracite uni with dark flakes |
| Surface tiles | 30 × 30 cm | 1.1 / 1.5 cm | R9 / R10 / R11 | black uni with light flakes |

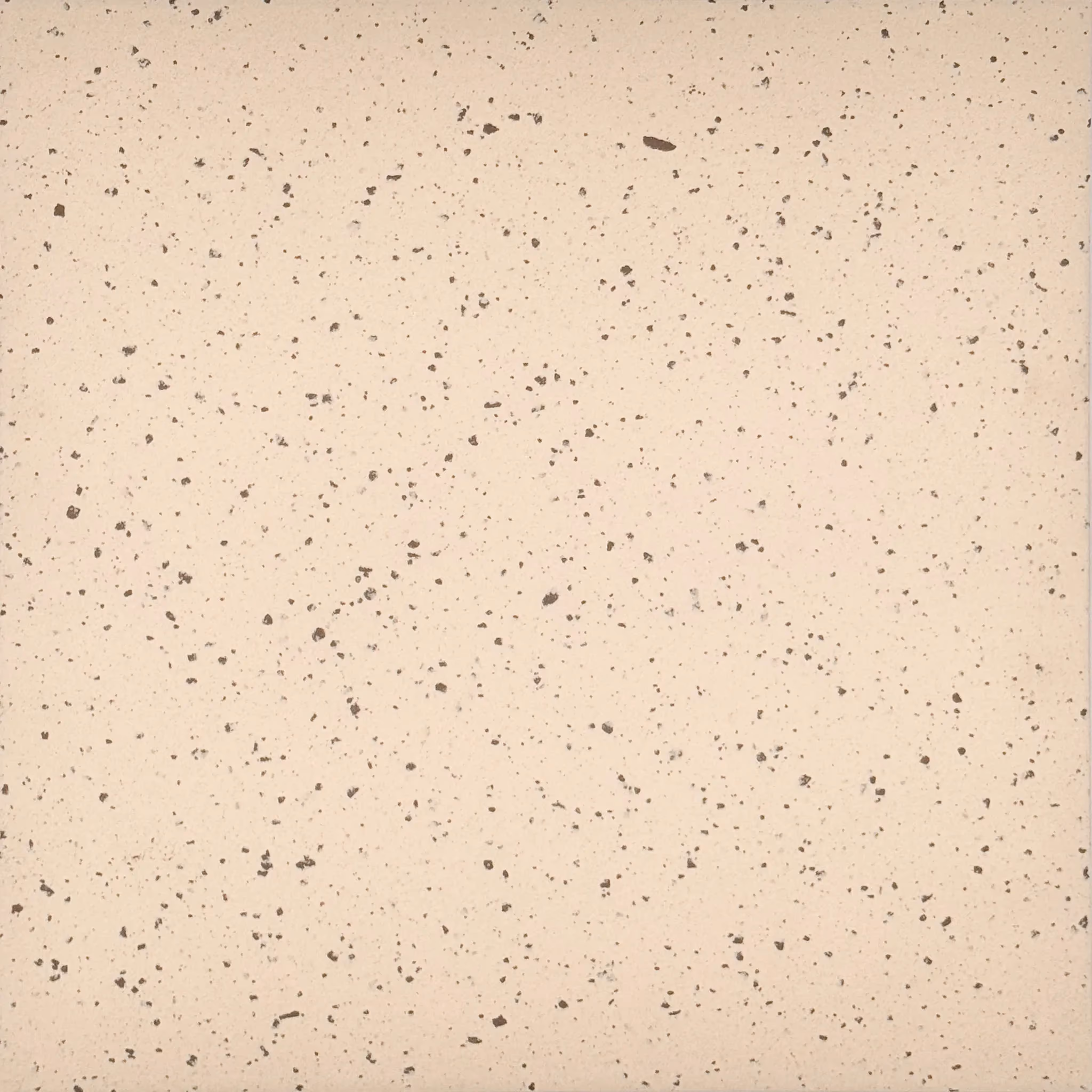

| Surface tiles | 30 × 30 cm | 1.1 / 1.5 cm | R9 / R10 / R11 | white uni with dark flakes |
